Upgrade Your Performance with the TriggerTech AR15 Diamond Two-Stage Trigger

If the AR-15 is your choice for competition, training, or personal defense, then the TriggerTech AR15 Diamond Two-Stage trigger is the perfect upgrade. Frictionless Release Technology uses a patented, free-floating roller that is captured between the sear and the trigger to provide a true zero-creep break with an over-travel of less than 0.015". The free-floating roller reduces the friction you experience with sliding friction triggers. Many shooters remark that the perceived trigger pull is about 0.5 lbs less than friction-based triggers of the same measured pull weight. Trigger over-travel and reset are controlled by the TKR Technology, called the "ticker." The "ticker" is an intermediate component that enables the sear to release without further trigger movement. This keeps over-travel to about 0.015" and trigger reset to less than 0.030".

Trigger pull weight is adjustable from 1.5 lbs to 4.0 lbs. Hardened 440C stainless steel is used for the internal trigger components which are contained and protected in an anodized aluminum housing. External stainless-steel components are protected from the elements with Physical Vapor Deposition, a hard and durable coating with a clean black finish. The trigger lever is the last point where you connect with the firearm before taking a shot. Shot after shot, the AR15 Diamond Two-Stage Trigger provides consistent performance for competition, training, or duty use.

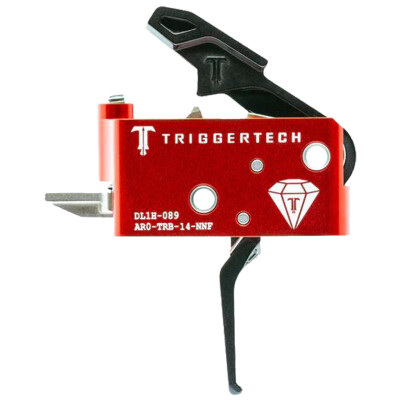

TriggerTech AR15 Diamond Two-Stage Flat Trigger Specifications and Features

Item Number: AR0-TRB-14-NNF

Platforms: AR-15, AR-10, AR-9

Short Two-Stage Drop-In PVD Flat Trigger

Adjustable Pull Weight: 1.5 - 4.0 lbs

Zero Creep

TKR Technology

FLTWR Technology

Creep: 0.00"

Over-Travel: Sub 0.015"

Reset: Sub 0.030"

Reset Feel: Tactile Mid Force

Hammer Strike Force: Full

Pin Size: Mil-Spec 0.154" (Pins NOT Included)

PVD Black Trigger

Hardened 440C Stainless Steel Key Components

7075 Aluminum Housing

Anodized Red Finish
