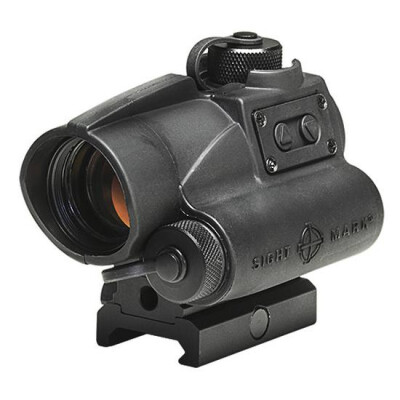

The Sightmark Wolverine CSR Red Dot Sight is designed specifically for shotguns and short-barreled rifles. The CSR sports a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Compact and light, the CSR model weighs only 10.3 ounces, and along with the FSR, offers very low power consumption. The CSR also offers variable brightness and night vision modes, which enables the ability to co-witness with a night vision sight. The rugged Wolverine line of sights from Sightmark delivers unlimited eye relief and first-class battery life using just a single AA battery in a durable, shockproof design. The responsive Wolverine sights are housed in a single piece of 6061-T6 aluminum that is rubber-armored and protected by a scratch resistant, anti-reflective lens coating. Fog proof and nitrogen purged, the Wolverine family of sights is designed to provide shooters the ability to take aim in a variety of conditions and temperate ranging from -22 to 122 F. The Wolverine was built to adapt and is ready for anything. Both models sport an IP67 waterproof rating and are submersible to three feet. Wolverine red dot sights have an adjustable mount height and are compatible with Picatinny mounts.
Features and Specifications:
Manufacturer Number: SM26021
Reticle Type: 4 MOA Dot
Reticle Color: Red
Illuminated Reticle: Yes
Brightness Setting: Off, NV1, NV2, 3-10
Magnification: 1 x
Window Dimension: 23 mm
Window Material: Glass
Eye Relief: Unlimited mm
Windage Range of Adjustment: 120 MOA
Elevation Range of Adjustment: 120 MOA
MOA Adjustment: 1 MOA
Finish/Color: Matte black
Body Materal: Aluminum 6061-T6 / rubber
Maximum Recoil: 800 g's
IP StandardIP67 (submergible to 1m / 3ft)
Shockproof:Yes
Fog Proof: Yes
Lens Coating: AR red
Mount Type: Weaver/Picatinny
Battery Type: AA
Battery Life: (high) 900 - (low) 1,000,000 / 50,000 (setting 6) hours
Battery Voltage:1.5 V
Operating Temp,°F/°C: -22 to 122 / -30 to 50 F/C
Length:33.3 / 84 in/mm
Width:2.8 / 71.6 in/mm
Height:2.4 / 61.1 in/mm
Weight:10.3 oz
Features and Specifications:
Manufacturer Number: SM26021
Reticle Type: 4 MOA Dot
Reticle Color: Red
Illuminated Reticle: Yes
Brightness Setting: Off, NV1, NV2, 3-10
Magnification: 1 x
Window Dimension: 23 mm
Window Material: Glass
Eye Relief: Unlimited mm
Windage Range of Adjustment: 120 MOA
Elevation Range of Adjustment: 120 MOA
MOA Adjustment: 1 MOA
Finish/Color: Matte black
Body Materal: Aluminum 6061-T6 / rubber
Maximum Recoil: 800 g's
IP StandardIP67 (submergible to 1m / 3ft)
Shockproof:Yes
Fog Proof: Yes
Lens Coating: AR red
Mount Type: Weaver/Picatinny
Battery Type: AA
Battery Life: (high) 900 - (low) 1,000,000 / 50,000 (setting 6) hours
Battery Voltage:1.5 V
Operating Temp,°F/°C: -22 to 122 / -30 to 50 F/C
Length:33.3 / 84 in/mm
Width:2.8 / 71.6 in/mm
Height:2.4 / 61.1 in/mm
Weight:10.3 oz
Not the full picture
Product seems well built and detailed instructions are included. Not happy at all how the laser positioning makes for a glob of sealant blocking view. This is not mentioned in any product pictures. If you can get over that fact it works as described Pros: Dot is clear and brightness settings work well Cons: The glob of red sealant blocks some vision.
January 6, 2019
Can't find anything better for the price.
Works great on my Micro Roni Recon 19. Optic was factory zeroed up to 65 ft. I didn't expect it to be up to that distance. After 500 rounds it's still holding the factory zero. For the price point I don't think you can find anything better. A little heavy but I don't think it's an issue.
July 22, 2018
Will this fit on a Henry lever action 22max?
Answer:
Not unless you have a picatinny optics rail installed on it.
