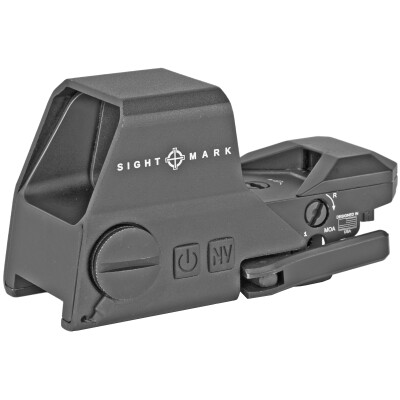

The Sightmark Ultra Shot A-Spec Reflex Sight is an ultra durable sight designed to mount to an AR-15 or similar type modern sporting rifle platform. It features a rugged 6061-T6 aluminum body and protective shield along with advanced AR coated and scratch resistant lens system. The reticle system features four separate reticles in red illumination. Pair that with the auto shut off and low battery indicator and you have a winning combination.
Specifications and Features:
Sightmark Ultra Shot A-Spec Reflex Sight SM26032
1x Magnification
33x24mm Objective
1 MOA Adjustment
120 MOA Adjustment Rang
Red Illumination
4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)
Brightness 1-10
Nightvision Mode
Unlimited Eye Relief
Rated up to .50 BMG
IP55 Water Resistant
AR Red Lens Coating
Quick Release Picatinny Mount
CR123A Battery
200 to 2,000 hour battery life
25 Yard Parallax Setting
Overall Length 4.3"
Overall Width 1.96"
Overall Height 2.28"
Overall Weight 10.8oz
Aluminum 6061-T6 Aluminum Housing
Matte Black Finish
Specifications and Features:
Sightmark Ultra Shot A-Spec Reflex Sight SM26032
1x Magnification
33x24mm Objective
1 MOA Adjustment
120 MOA Adjustment Rang
Red Illumination
4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)
Brightness 1-10
Nightvision Mode
Unlimited Eye Relief
Rated up to .50 BMG
IP55 Water Resistant
AR Red Lens Coating
Quick Release Picatinny Mount
CR123A Battery
200 to 2,000 hour battery life
25 Yard Parallax Setting
Overall Length 4.3"
Overall Width 1.96"
Overall Height 2.28"
Overall Weight 10.8oz
Aluminum 6061-T6 Aluminum Housing
Matte Black Finish
No Ratings
Be the first to review this item
How do u get the nite vision to work? I've followed the included instructions and have no results.
Answer:
What most users encounter when enabling this feature is the loss of their dot, and even think the device has turned off. That is not the case. The night vision mode on these optics is designed to be used in conjunction with another night vision device such as a night vision monocular or goggles. When in NV mode, the optic produces a very dim reticle that is too dim to see without another NV device. If you are not using another NV device in conjunction with the optic while in night mode, no image will appear. Simply press the regular brightness button to exit NV mode.
