LUTH-AR offers replacement components for the AR-15 that are made to strict military specifications. These high quality components will provide excellent fit and reliable function in your AR series rifle and are perfect for upgrading existing components or replacing worn or broken parts.

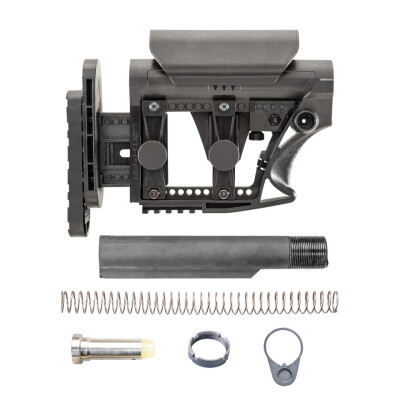

This package includes:
(1) MBA-3 Modular Buttstock Assembly
(1) Carbine 6-Position Mil-Spec Buffer Tube
(1) .308 Carbine Buffer Spring
(1) .308 Carbine Buffer Body
(1) Latch Plate
(1) Lock Ring
The MBA-3 includes the following features:
Buttstock assembly to mount to a Carbine AR
Fits all .223 and most .308 AR style rifles
Easy to Replace and quick to install
It adds up to 1-inch of height on the cheek rest, and an additional 1-1/16 inch length of pull
Made of super strong glass-filled nylon, the Luth-AR MBA-3 weighs roughly half that of comparable stocks coming in at just 18 ounces.
Includes a Picatinny Rail on the bottom rear of the Stock Body to attach your choice of many accessories.
Designed a flat bottom index set screw (10-24) to eliminate that constant rattle of carbine collapsible buttstock. This also allows you to secure the stock in your favorite position.
3-axis adjustable butt plate assembly (keep in mind this butt plate assembly is interchangeable with the original MBA-1 Buttstock) will have the following movement:
1.Horizontal for linear adjustment (i.e. length of pull)
2.Vertical for a perfect butt plate fit into the curvature of the shoulder.
3.Lateral adjustment for a ½ inch left or right cast.
Ergonomic
Adapts To Existing Commercial and Mil-Spec Buffer Tubes
Certain after Market Commercial Buffer Tubes that exceed 1.172" may not fit
The MBA-3 and MBA-4 will come in black. Flat dark earth and Pink will be available in a few more months
The vertical struts for the MBA 3 are fixed therefore the cheek pc is not reversible like the MBA 1 however the cheek pc itself is designed with a cheek pad for the lefty
Specifications
Length of Pull (LOP) - Extended: 15 5/8"
Length of Pull (LOP) - Collapsed: 11 11/16"
Overall Length Extended: 8 3/4"
Overall Length Collapsed: 7 11/16"
Weight: 18.5 ounces
*Length of Pull Specs depend on Buffer Tube Hole Location/Position and 5 or 6 hole patter.
Compatible Buffer Assemblies:
.223 Mil-Spec Carbine Buffer Assembly
.223 Commercial Carbine Buffer Assembly
.308 Mil-Spec Carbine Buffer Assembly (Included)
.308 Commercial Carbine Buffer Assembly
Additional Information
Installation Notes:
When tightening the anti-rattle set screw, be careful not to over tighten as it may cause the threaded insert to separate from the plastic stock body.
Note: This product is new and being closed out; sold "As Is" and is not returnable to Cheaper Than Dirt. Please contact the manufacturer for warranty and assistance.
This package includes:
(1) MBA-3 Modular Buttstock Assembly
(1) Carbine 6-Position Mil-Spec Buffer Tube
(1) .308 Carbine Buffer Spring
(1) .308 Carbine Buffer Body
(1) Latch Plate
(1) Lock Ring
The MBA-3 includes the following features:
Buttstock assembly to mount to a Carbine AR
Fits all .223 and most .308 AR style rifles
Easy to Replace and quick to install
It adds up to 1-inch of height on the cheek rest, and an additional 1-1/16 inch length of pull
Made of super strong glass-filled nylon, the Luth-AR MBA-3 weighs roughly half that of comparable stocks coming in at just 18 ounces.
Includes a Picatinny Rail on the bottom rear of the Stock Body to attach your choice of many accessories.
Designed a flat bottom index set screw (10-24) to eliminate that constant rattle of carbine collapsible buttstock. This also allows you to secure the stock in your favorite position.
3-axis adjustable butt plate assembly (keep in mind this butt plate assembly is interchangeable with the original MBA-1 Buttstock) will have the following movement:
1.Horizontal for linear adjustment (i.e. length of pull)
2.Vertical for a perfect butt plate fit into the curvature of the shoulder.
3.Lateral adjustment for a ½ inch left or right cast.
Ergonomic
Adapts To Existing Commercial and Mil-Spec Buffer Tubes
Certain after Market Commercial Buffer Tubes that exceed 1.172" may not fit
The MBA-3 and MBA-4 will come in black. Flat dark earth and Pink will be available in a few more months
The vertical struts for the MBA 3 are fixed therefore the cheek pc is not reversible like the MBA 1 however the cheek pc itself is designed with a cheek pad for the lefty
Specifications
Length of Pull (LOP) - Extended: 15 5/8"
Length of Pull (LOP) - Collapsed: 11 11/16"
Overall Length Extended: 8 3/4"
Overall Length Collapsed: 7 11/16"
Weight: 18.5 ounces
*Length of Pull Specs depend on Buffer Tube Hole Location/Position and 5 or 6 hole patter.
Compatible Buffer Assemblies:
.223 Mil-Spec Carbine Buffer Assembly
.223 Commercial Carbine Buffer Assembly
.308 Mil-Spec Carbine Buffer Assembly (Included)
.308 Commercial Carbine Buffer Assembly
Additional Information
Installation Notes:
When tightening the anti-rattle set screw, be careful not to over tighten as it may cause the threaded insert to separate from the plastic stock body.
Note: This product is new and being closed out; sold "As Is" and is not returnable to Cheaper Than Dirt. Please contact the manufacturer for warranty and assistance.
Excellent addition to my kit
Excellent addition to my build. Instructions are a bit vague because they are for all models. But if you've replaced a buffer tube before, you won't have any issues.
April 23, 2023
Nice set up two way adjustable lengthComfortable
June 18, 2022
DOES THIS FIT THE DPMS VERSION OF THE .308 OR THE ARMALITE AR-10 VERSION?
Answer:
This will fit both.
Will this work with a 5d tactical 80% 308 lower?
Answer:
If your 308 lower is threaded to accept standard AR buffer tubes, than yes this will work.
