LUTH-AR offers replacement components for the AR-15 that are made to strict military specifications. These high quality components will provide excellent fit and reliable function in your AR series rifle and are perfect for upgrading existing components or replacing worn or broken parts.

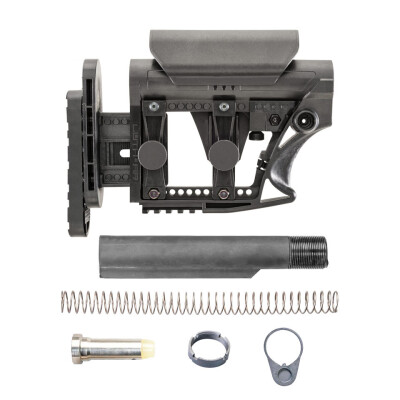

This package includes:
"(1) MBA-3 Modular Buttstock Assembly
"(1) Carbine 6-Position Mil-Spec Buffer Tube
"(1) .223 Carbine Buffer Spring
"(1) .223 Carbine Buffer Body
"(1) Latch Plate
"(1) Lock Ring
The MBA-3 includes the following features:
"Buttstock assembly to mount to a Carbine AR
"Fits all .223 AR style rifles
"Easy to Replace and quick to install
"It adds up to 1-inch of height on the cheek rest, and an additional 1-1/16 inch length of pull
"Made of super strong glass-filled nylon, the Luth-AR MBA-3 weighs roughly half that of comparable stocks coming in at just 18 ounces.
"Includes a Picatinny Rail on the bottom rear of the Stock Body to attach your choice of many accessories.
"Designed a flat bottom index set screw (10-24) to eliminate that constant rattle of carbine collapsible buttstock. This also allows you to secure the stock in your favorite position.
"3-axis adjustable butt plate assembly (keep in mind this butt plate assembly is interchangeable with the original MBA-1 Buttstock) will have the following movement:
1.Horizontal for linear adjustment (i.e. length of pull)
2.Vertical for a perfect butt plate fit into the curvature of the shoulder.
3.Lateral adjustment for a ¬Ω inch left or right cast.
"Ergonomic
"The vertical struts for the MBA 3 are fixed therefore the cheek pc is not reversible like the MBA 1 however the cheek pc itself is designed with a cheek pad for the lefty
Features and Specifications
"Length of Pull (LOP) - Extended: 15 5/8"
"Length of Pull (LOP) - Collapsed: 11 11/16"
"Overall Length Extended: 8 3/4"
"Overall Length Collapsed: 7 11/16"
"Weight: 18.5 ounces
*Length of Pull Specs depend on Buffer Tube Hole Location/Position and 5 or 6 hole patter
It does not include the following, but can be purchased separately in the accessories section:
"Sling Swivels
"Latch Plate
"Lock Ring
Installation Notes:
When tightening the anti rattle set screw, be careful not to over tighten as it may cause the threaded insert to separate from the plastic stock body.
This package includes:
"(1) MBA-3 Modular Buttstock Assembly
"(1) Carbine 6-Position Mil-Spec Buffer Tube
"(1) .223 Carbine Buffer Spring
"(1) .223 Carbine Buffer Body
"(1) Latch Plate
"(1) Lock Ring
The MBA-3 includes the following features:
"Buttstock assembly to mount to a Carbine AR
"Fits all .223 AR style rifles
"Easy to Replace and quick to install
"It adds up to 1-inch of height on the cheek rest, and an additional 1-1/16 inch length of pull
"Made of super strong glass-filled nylon, the Luth-AR MBA-3 weighs roughly half that of comparable stocks coming in at just 18 ounces.
"Includes a Picatinny Rail on the bottom rear of the Stock Body to attach your choice of many accessories.
"Designed a flat bottom index set screw (10-24) to eliminate that constant rattle of carbine collapsible buttstock. This also allows you to secure the stock in your favorite position.
"3-axis adjustable butt plate assembly (keep in mind this butt plate assembly is interchangeable with the original MBA-1 Buttstock) will have the following movement:
1.Horizontal for linear adjustment (i.e. length of pull)
2.Vertical for a perfect butt plate fit into the curvature of the shoulder.
3.Lateral adjustment for a ¬Ω inch left or right cast.
"Ergonomic
"The vertical struts for the MBA 3 are fixed therefore the cheek pc is not reversible like the MBA 1 however the cheek pc itself is designed with a cheek pad for the lefty
Features and Specifications
"Length of Pull (LOP) - Extended: 15 5/8"
"Length of Pull (LOP) - Collapsed: 11 11/16"
"Overall Length Extended: 8 3/4"
"Overall Length Collapsed: 7 11/16"
"Weight: 18.5 ounces
*Length of Pull Specs depend on Buffer Tube Hole Location/Position and 5 or 6 hole patter
It does not include the following, but can be purchased separately in the accessories section:
"Sling Swivels
"Latch Plate
"Lock Ring
Installation Notes:
When tightening the anti rattle set screw, be careful not to over tighten as it may cause the threaded insert to separate from the plastic stock body.
