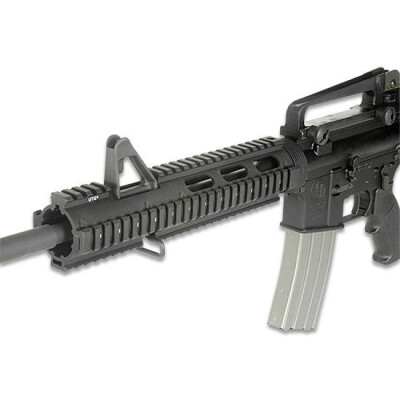

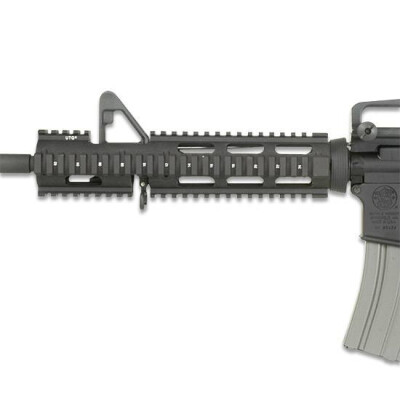

More Rail Space Means More Room for AR-15 Accessories
This drop-in UTG Pro AR quad rail handguard has a free float extension that allows for a huge array of accessories on your carbine-length rifle. The extended length of this three-piece rail provides additional rail space in front of the A frame sight for lights, lasers, or grips to increase the control and ergonomics of your rifle.
The additional weight forward of the barrel nut also helps to mitigate recoil. Made from aircraft grade aluminum with integral spinal cords, it's rugged design locks in solid and will last a lifetime. If you have an old-school AR with A2 sight and plastic handguards you can get that modern tactical look without completely rebuilding the upper. This 10.7" handguard retains the use of both the sight and factory sling swivel. It also comes with 18 rubber rail covers to use however you like to get that perfect feel. The connecting, three-piece design installs easily without gunsmithing or modification to your rifle.
Ask any one of the tens of thousands of satisfied UTG accessory owners, and you will learn that UTG Pro is the best value in AR-15 handguards.
Please Note:Some hand fitting may be required.
Does not fit Ruger AR-556.
UTG Extended Carbine-Length Quad Rail Specifications and Features:
- Manufacturer Number: MTU015
- Designed and Made in the USA
- Aircraft Aluminum Extrusion with Integral Spinal Cords for Alignment
- Solid Locking Feature for Secure Fit and Zero Retention
- (1) Top Rail, 19 Slots
- (1) Bottom Rail, 23 Slots
- (2) Side Rails, 25 Slots Each
- Material: Hard Anodized Aircraft Aluminum
- Dimensions: 10.7" x 2.44" x 2.44"
- Weight: 17 oz
- Finish: Black
- (18) Rubber Rail Guards Included
- Any standard AR-15 with carbine-length handguards and A2 front sight post
- Some hand fitting may be required.
- DOES NOT FIT RUGER AR-556.
Lifetime Warranty
Nice rail
Perfect fit, no rattling or movement.
December 25, 2023
Great product
Loved it... looks better than i thought it would. Price was great. Easy to install.
August 25, 2023
Solid rail platform
Great fit. Looks menacing! Rock solid rail system to add any possible combination of accessories to your AR15 carbine. Very easy installation and everything fits with precision. It is a quality product and it will hold up. It comes with plastic rail covers but you will need some extra large meat hooks to get your hand around this girthy thing. It is thick- without the grip guards it is about the same size as a standard guard. Adding the included covers is just a lot of mass in front if the rifle. It adds a needed weight to the barrel for long distances as well. The lower part of the guard is in two parts. Removing the very front lower cover exposes the bayonet lug. Installing an extension will still allow for attaching a bayonet if thats your thing. All in all I think its a solid platform to build on and to pull the potential out of the carbine.
June 22, 2023
Good drop in hand guard
Works well and easy to install
June 20, 2023
Love it perfect fit
June 11, 2023
Awesome drop in rail system
Very well built. Easy to install and looks great. Very solid once installed. I suggest using thread lock as you would for any screw on attachment
April 30, 2023
Excellent quad rail
This UTG extended quad rail is great quality. Bolted right on my SW MP without any issues. Looks great!
April 19, 2023
9.75/10, It's plenty long, im just spoiled. Wish it was longer.
I wish It was a little more extended, nonetheless 10/10 would reccomend. Sturdy as hell, locks up great.
April 17, 2023
A bit weighty
Looks good, feels good with the rail guards in place. Gave 4 stars only due to the weight, and regret not spending the extra money for the M-lock super slim model. This is over a pound, compared to about 11 oz. on the other M-lock models. If the weight doesn’t bother you then this one’s for you.
April 11, 2023
The best way to get more quad rail on a carbine length rifle!
This drop-in quad rail fits perfectly on my AM-15 that came with a high rise picatinny gas block and is a really good package for the money! Installed quickly and easily with the tools that came with the product.
April 3, 2023
Will this fit a bear creek 15 with a2 front site?
Answer:
Yes if your current handguard is aprox 6.5-7" if it is longer it will not fit.
I have a psa pa-15 10.5 In ar will thus fit?
Answer:
It would technically fit, but you cannot use it as overlapping the muzzle device would lead to damage.
Does this fit a mp 15 sport ?
Answer:
Yes it will as long as you have the model with the front sight post and not the optics ready model.
My build is only using the ruger 5.56 barrel. Will it still not fit?
Answer:
No, this will not fit without permanent modification to the handguard or firearm.
Will this fit a Springfield saint with a 9 inch handguard?
Answer:
No it will not.
Will this fit a Springfield saint?
Answer:
Not if you have a mid-length gas system.
What is the ID measurement of this rail system?
Answer:
Just under 2"
Will this fit the colt m4?
Answer:
If your Colt M4 has a carbine length gas system and an A2 style front sight, this will fit.
Will this fit on a colt match H bar?
Answer:
If you have the variant with the carbine length gas system, this should fit. If you have the variant with the rifle length gas system, this will not fit.
I have a RockRiver AR15 will this fit?
Answer:
Rock River makes more than one variant of AR15. If your AR15 has a carbine length gas system with an A2 style front sight, then this should fit.
Will this fit my bushmaster Ar15 with carry handle and raised sight?
Answer:
If you have a carbine length gas system and an A2 style front sight this should fit fine.
Will this fit a Colt AR15?
Answer:
As long as your Colt has a carbine length gas system that requires a drop in handguard, this will fit.
Will this fit colt AR15 A4?
Answer:
No it will not.
Do I need to use loctite on the screws?
Answer:
Leapers UTG does not specify one way or the other in the instructions. The handguard is aluminum, so it's probably not necessary.
Will this fit a mid length gas system?
Answer:
No it will not. This is designed to fit a carbine length gas system.
Will this fit my Arma Lite M15 with A2 front sight and triangle cap?
Answer:
No, this will only fit a carbine length gas system and your model has a mid-length gas system. Try item # ARR-241.
Will this fit my Armalite M15 ?
Answer:
The M15 has come with more than one setup. If your M15 has a carbine length gas system, two piece drop-in style handguard, and an A2 front sight; then this will fit. If your M15 came with a free float handguard; then you will need to add a delta ring assembly, round front end cap, and change to an A2 style front sight/gas block.
Will this work on a Colt AR15a4 rifle?
Answer:
No, this will not fit. The Colt AR15a4 rifle typically has a rifle length gas system. Try item # 7-MCTAR19G2 or 2-MPIMAG427BLK.
Will this fit a dpms oracle?
Answer:
If you have a DPMS Oracle chambered in .223 Rem/5.56 NATO, then this should fit. However, you may need to remove a little material from the picatinny rail on the gas block.
I have an original Bushmaster AR-15. Will I have to make any modifications because of the bayonet lug underneath? Somebody stated on a February 2023 article that they had to trim the front opening to accommodate it
Answer:
If you have a carbine length gas system with delta ring assembly and an A2 style front sight, then this should fit. This is typically a drop-in fit, however, minor fitting may be required in some instances.
Will this fit a Sig Sauer m400 enhanced?
Answer:
No this will not fit. The M400 has a proprietary handguard. Check out item # 110258 and 110257.
What is the over All length of the gaurd?
Answer:
The overall length is 10.7".
Will this fit a diamond back db15?
Answer:
If you have a Carbine system yes this is a Drop in.
Will is fit an 11.5 barrel with an a2 front sight?
Answer:
This will fit if you have a carbine length gas system with a delta ring assembly and A2 front sight.
Will this fit over an Osprey Defense gas piston?
Answer:
No this may not accommodate a gas piston system.
Will this fit the smith and Wesson m&p10 18”?
Answer:
No this will not fit. If you have the S&W M&P 10 with two piece drop-in style handguard, try item # ARR-276-019. If you have the S&W M&P 10 with free float handguard, try item # ARR-073-008 or 133748.
Is it compatible with a Springfield Saint AR15?
Answer:
No it is not. The Springfield saint uses a Mid length gas system.
Will this fit with a triangular front cap? I have a psa 16 inch carbine upper?
Answer:
No this is for Round end caps.
does this fit a 10.5" barrel AR pitol?
Answer:
Fitment will depend on your setup. Some AR pistols use a pistol length gas system and the gas block will vary. This handguard is only compatible with firearms that have a carbine length gas system and an A2 style front sight/gas block.
Will this item fit my Springfield armory saint 556/223 nato? Looking for something like this for my rife
Answer:
No it will not. Try the Midlength Troy Delta.
Do they make this handguard without front sight gap?
Answer:
UTG makes free-float quad rails similar to this, check out item # 16-MTU006. However, we do not carry any extended two piece drop-in style carbine length handguards that do not have a sight gap.
Will this fit dpms? model number DP 51655-109559 sorry for the space and dash in the middle. It thinks I’m leaving a phone number. It’s just a model number
Answer:
Unfortunately that number did not pull up information or photos through Google, so it may be a serial number or a model without much online support. There is more than one variant of the DPMS AR15. If your model currently has a has a carbine length two-piece drop-in style handguard with A2 front sight, than this will fit. If you would like additional assistance you can reach our product techs Monday thru Friday from 8am to 5pm central time at 1-800-421-8047 or by using our live chat feature.
Will this work on a Rock River Arms Entry Tactical ?
Answer:
Yes this should fit.
Will it fit bushmaster xm15ea2 with fixed carry handle it is carbine length fixed a2 front sight?
Answer:
Yes it should.
I don't suppose this will fit on a s&w m&p 15?
Answer:
It may or may not fit depending on the configuration of your rifle and there is more than one variant of the M&P 15. This is designed for firearms with a carbine length gas system, A2 style front sight, and two piece drop-in style handguard. If you have a gas block with a picatinny rail on top, rather than an A2 style sight, some fitting may be required.
Will this fit on a M4A3 / AR-10 rifle?
Answer:
No this item is for AR-15 rifles it will not work on Ar-10's
Will this fit an m&p 15 sport 2 with iron sights?
Answer:
Yes it will.
Will this fit my Smith & Wesson Sport 2?
Answer:
This will fit the M&P15 with a front sight, this will not fit the ones with the Picatinny rail gas block
Will this fit a windham weaponry ww 15?
Answer:
There is more than one variant of the WW15. If your model has a currently has a 7" two-piece drop-in style handguard with A2 front sight, than this will fit.If you need additional assistance you can reach our product techs Monday thru Friday from 8am to 5pm central time at 1-800-421-8047 or by using our live chat feature.
Will it fit on a ruger ar 556 ?
Answer:
Not without modification. Due to the way the gas block is on the Ruger you have to Cut either the Bayonet lug or the rail itself in order to make it fit.
Will this fit an Anderson am-15?
Answer:
Yes it should.
How long is the total handgaurd?
Answer:
It is 10.7" long.
Will this also fit a Ruger AR 556 carbine length (fixed front sight)?
Answer:
Not without modification. Due to the way the gas block is on the Ruger you have to Cut either the Bayonet lug or the rail itself in order to make it fit.
Will this fit a Springfield armory saint 5.56 nato?
Answer:
No it will not the saint uses a Mid length system this is for a carbine system.
Would this fit on a ruger ar-556?
Answer:
Not without modification. Significant fitting may be required due to Ruger's proprietary design.
Will this fit a 16" 5.56 / .223 AR-15 1X8 FAXON FIREARMS GOVT / SOCOM PROFILE MID-LENGTH BARREL?
Answer:
No it will not. This is designed for AR-15s with carbine length gas system. This is a drop-in style two piece handguard that requires a retaining cap and delta ring to hold it in place.
Will this fit the M16 platform?
Answer:
No. The M16 utilizes a rifle length gas system. This product requires a carbine length gas system found on the M4 or AR-15.
Will this fit on a MOE upper?
Answer:
This will fit any AR platform rifle with a carbine length gas system that requires a drop in handguard.
Is it fit for MP 15 sport 2?
Answer:
Yes it will.
I have a stock m4. It has like circular catch at the top of the handguard just below the front sight. Will this cover over that?
Answer:
Yes this should work just fine.
Will this fit on a springfield saint?
Answer:
No it will not. You need a mid-length system.
Will it fit Armalite AR 556 ?
Answer:
It should fit any AR-15 with a carbine length gas system that requires a drop in handguard.
