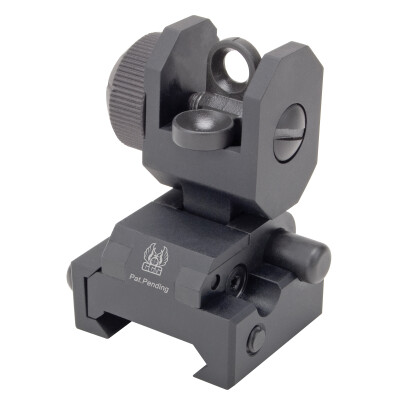

GG&G, AR-15, Spring Actuated A2 Back Up Iron Sight Picatinny, Black.
The GG&G A2 Spring Actuated BUIS (Back Up Iron Sight) is the latest evolution in our BUIS product line. Many operators requested that we manufacture an A2 BUIS rear flip sight that would deploy with just a push of a button. The flip up sight not only springs into an on target position with just the push of the actuator button, but it also locks solidly into the upright on target position. Another push of the button and the lock is released allowing you to set the spring sight into the locked down position. The flip rear sight cannot be folded down without depressing the actuator button located on the left side of the sight base. Equipped with the GG&G tactile grip windage knob, adjustments are easy and precise.
The Spring Actuated A2 BUIS can be used as a stand-alone sight or in conjunction with one of our interface rails. It can also be used as a co-witness iron sight with most red dot sighting systems. Weighing in at just over 2.4 ounces, it features the standard military A2-style double peep aperture which allows for end user known point of impact. The AR-15 flip up rear sight has full windage adjustment with standard military windage knob and windage screw. It is low profile so that when in the down position, it will clear most optics. The mount is manufactured from solid billet 6061 T6 aluminum alloy and Type III hard coat anodized in a non-reflective black mil-spec finish to provide combat durability. All steel components are black manganese phosphated per mil-spec.
Features and Specifications:
Manufacturer Number: GGG-1005SA
Low profile when in down position, allowing clearance for most optics
Solid squeeze rail attachment mechanism with counter sunk crossbolt
Quickly springs into an on target position with a push of the actuator button, locking solidly into the upright position
Another push of the button and the lock is released allowing the sight to be placed in the down position
Can be used as a stand-alone sight, in conjunction with GG&G Interface Rails, or as a True Center co-witness iron sight with most red dot optics.
Standard military A2-style double peep aperture allowing for end user known point of impact.
Full windage adjustment with a tactile windage knob and windage screw
Windage knob click provides approximately 0.48 MOA change when mounted on the 20"AR-15 rifle and about 0.65 MOA on the 14.5" M4 carbine.
Height in the upright position is 1.400" and in the fold down position is .720".
Deburred and softened to protect the shooter
Sight body and sight stem are manufactured from billet 6061 T6-aluminum
All aluminum parts are Type III hard coat anodized in a non-reflective black mil-spec finish to provide combat durability.
Weight: 1.8 oz
GG&G Lifetime Warranty
Made in the USA
Fits:
Mil-Std-1913 Dovetail rail.
Note: This product is new and being closed out; sold "As Is" and is not returnable to Cheaper Than Dirt. Please contact the manufacturer for warranty and assistance.
The GG&G A2 Spring Actuated BUIS (Back Up Iron Sight) is the latest evolution in our BUIS product line. Many operators requested that we manufacture an A2 BUIS rear flip sight that would deploy with just a push of a button. The flip up sight not only springs into an on target position with just the push of the actuator button, but it also locks solidly into the upright on target position. Another push of the button and the lock is released allowing you to set the spring sight into the locked down position. The flip rear sight cannot be folded down without depressing the actuator button located on the left side of the sight base. Equipped with the GG&G tactile grip windage knob, adjustments are easy and precise.
The Spring Actuated A2 BUIS can be used as a stand-alone sight or in conjunction with one of our interface rails. It can also be used as a co-witness iron sight with most red dot sighting systems. Weighing in at just over 2.4 ounces, it features the standard military A2-style double peep aperture which allows for end user known point of impact. The AR-15 flip up rear sight has full windage adjustment with standard military windage knob and windage screw. It is low profile so that when in the down position, it will clear most optics. The mount is manufactured from solid billet 6061 T6 aluminum alloy and Type III hard coat anodized in a non-reflective black mil-spec finish to provide combat durability. All steel components are black manganese phosphated per mil-spec.
Features and Specifications:
Manufacturer Number: GGG-1005SA
Low profile when in down position, allowing clearance for most optics
Solid squeeze rail attachment mechanism with counter sunk crossbolt
Quickly springs into an on target position with a push of the actuator button, locking solidly into the upright position
Another push of the button and the lock is released allowing the sight to be placed in the down position
Can be used as a stand-alone sight, in conjunction with GG&G Interface Rails, or as a True Center co-witness iron sight with most red dot optics.
Standard military A2-style double peep aperture allowing for end user known point of impact.
Full windage adjustment with a tactile windage knob and windage screw
Windage knob click provides approximately 0.48 MOA change when mounted on the 20"AR-15 rifle and about 0.65 MOA on the 14.5" M4 carbine.
Height in the upright position is 1.400" and in the fold down position is .720".
Deburred and softened to protect the shooter
Sight body and sight stem are manufactured from billet 6061 T6-aluminum
All aluminum parts are Type III hard coat anodized in a non-reflective black mil-spec finish to provide combat durability.
Weight: 1.8 oz
GG&G Lifetime Warranty
Made in the USA
Fits:
Mil-Std-1913 Dovetail rail.
Note: This product is new and being closed out; sold "As Is" and is not returnable to Cheaper Than Dirt. Please contact the manufacturer for warranty and assistance.
