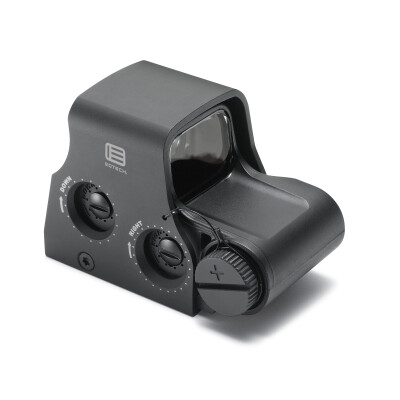

The EOTech XPS3 sight is smaller and lighter than the other holographic weapon sights, is night vision capatible, runs on a single 123 battery and allows more rail space for rear iron sights, magnifiers, or night vison scopes.
Features 65 MOA Reticle with 1 MOA dot, waterproof, a shortened base that only requires 2.75" of rail space, battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap achieving better sealing, and the average battery life at brightness level 12 is roughly 600 hours.
Operation
Optics: Transmission holography - parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 3.5"x 2"x2.4"
Weight: 8 oz
Temperature: -40 to 150 F
Waterproof: Submersible to 33 ft depth
Sealing: Fogproof internal optics
Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
Adjustment Range: +/- 40 MOA travel
Mount: 1" Weaver or Picatinny (MIL-STD-1913) rail
Return to Zero: Repeatable to 2 MOA after re-mounting
Night Vision Comatibility: yes, 10 additional settings
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20" x 0.85"
Front Window Material: 1/8" solid glass
Rear Window Material: Shatter resistant laminate (3/16" thick)
Field of View (100 yds): 30 yds at a 4" eye relief
Electrical
Brightness Adjustment Range: 146,000:1 brightest to lowest
Night Vision Brightness Range: 1280:1 with NV switch engaged
Power Source: (1) 123 lithium battery
Battery Life: 600 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: Set to 8 hrs; programmable to 4 hrs
Features 65 MOA Reticle with 1 MOA dot, waterproof, a shortened base that only requires 2.75" of rail space, battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap achieving better sealing, and the average battery life at brightness level 12 is roughly 600 hours.
Operation
Optics: Transmission holography - parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 3.5"x 2"x2.4"
Weight: 8 oz
Temperature: -40 to 150 F
Waterproof: Submersible to 33 ft depth
Sealing: Fogproof internal optics
Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
Adjustment Range: +/- 40 MOA travel
Mount: 1" Weaver or Picatinny (MIL-STD-1913) rail
Return to Zero: Repeatable to 2 MOA after re-mounting
Night Vision Comatibility: yes, 10 additional settings
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20" x 0.85"
Front Window Material: 1/8" solid glass
Rear Window Material: Shatter resistant laminate (3/16" thick)
Field of View (100 yds): 30 yds at a 4" eye relief
Electrical
Brightness Adjustment Range: 146,000:1 brightest to lowest
Night Vision Brightness Range: 1280:1 with NV switch engaged
Power Source: (1) 123 lithium battery
Battery Life: 600 continuous hours at nominal setting 12
Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
Auto Battery Check Indicator: Flashing reticle upon start-up
Auto Shut-down: Set to 8 hrs; programmable to 4 hrs
OK, they are expensive, b
OK, they are expensive, but, like most things, they are a little cheaper at CTD. I find the EOTECH work great, ultra reliable, easy to clean, hold up to even automatic fire and hold zero when taken on and off the same gun mount - just be sure to align the same slots for mounting on a rail. Night vision aspect works well with AN/PVS-14 monocular behind the sight. I've had mine for some time and the original battery is still good - so it will work when you need it to. Comfortable to use, accurate, adjustable brightness for all situations, easy to see reticle in full daylight. All around worth the money.
August 25, 2014
