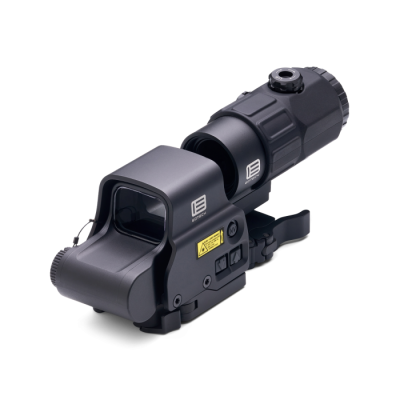

The EOTech Holographic Hybrid Sight (HHS) V is an operator-grade, night vision-compatible, and American-made solution to fast target acquisition during close-quarter engagements. The HHS V is technically a combination of two EOTech optics: the EXPS3-4 holographic weapon sight (HWS), and the G45.STS magnifier.
The HWS (3.8" L x 2.3" W x 2.9" H; 11.2 oz.) features the EOTech 4-dot ballistic reticle (68 MOA ring surrounding a 1 MOA center dot; designed for 5.56 M855 at ~2,680 fps with 14.5” barrel, with dots corresponding to 50/200, 400, 500 and 600 yards). The HWS additionally features a night vision button, raised on/off and brightness buttons, easy-to-manipulate elevation and windage adjustments, and universal mount with quick-detach lever.
The magnifier (3.9" L x 2.3" W x 3.3" H; 12.8 oz.) enables fast transitioning from 1x to 5x, as well as tool-free vertical and horizontal adjustment with a large field-of-view. It additionally features an adjustable diopter, Switch-to-Side mounting system, and quick-detach lever with locking button. Left- and right-handed shooter friendly!
EOTech HHS V Specifications and Features:
Item Number: HHS V
Magnification 5X
Reticle: 1 MOA Red Dot
Adjustment: 0.5 MOA per click
Illumination Settings: 20 daylight/10 night vision
Housing: Aluminum
Water Resistance: Up to 33 feet
Battery: 1X CR123
Battery Life: 1,000 continuous hours (at nominal setting 12; at room temperature)
Color: Black
Mount: 1" Weaver or MIL-STD-1913 rail
The HWS (3.8" L x 2.3" W x 2.9" H; 11.2 oz.) features the EOTech 4-dot ballistic reticle (68 MOA ring surrounding a 1 MOA center dot; designed for 5.56 M855 at ~2,680 fps with 14.5” barrel, with dots corresponding to 50/200, 400, 500 and 600 yards). The HWS additionally features a night vision button, raised on/off and brightness buttons, easy-to-manipulate elevation and windage adjustments, and universal mount with quick-detach lever.
The magnifier (3.9" L x 2.3" W x 3.3" H; 12.8 oz.) enables fast transitioning from 1x to 5x, as well as tool-free vertical and horizontal adjustment with a large field-of-view. It additionally features an adjustable diopter, Switch-to-Side mounting system, and quick-detach lever with locking button. Left- and right-handed shooter friendly!
EOTech HHS V Specifications and Features:
Item Number: HHS V
Magnification 5X
Reticle: 1 MOA Red Dot
Adjustment: 0.5 MOA per click
Illumination Settings: 20 daylight/10 night vision
Housing: Aluminum
Water Resistance: Up to 33 feet
Battery: 1X CR123
Battery Life: 1,000 continuous hours (at nominal setting 12; at room temperature)
Color: Black
Mount: 1" Weaver or MIL-STD-1913 rail
