Arisaka's Offset Optic Mount is a Secure and Precise Way to Add an Offset Optic to Your Rifle

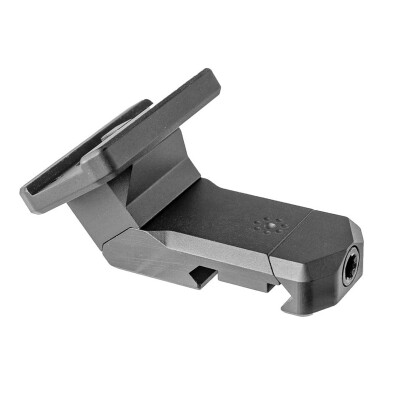

Arisaka Defense's Offset Optic Mount is a modular mounting solution that allows the user to select a 35 or 45 degree offset position for their red dot sight without additional components. The 35 degree position brings the red dot sight up closer to slimmer, smaller scopes, while the 45 degree position provides additional clearance around wider turrets. To set the mount to either to 35 or 45 degrees, simply reverse the stem between the optic plate and base during assembly. This mount's unique geometry correctly aligns the optic vertically over the bore and maintains a consistent height at both 35 and 45 degrees.

Two heights of plates are offered; standard (1.5" to 1.8") and tall (1.9" to 2.2"). The base and optic plates can be reversed, making the mount fully ambidextrous. It is recommended that you choose the plate height that corresponds to your primary optic height. For example, if your scope is mounted in a 1.54" height mount, you'd choose the regular height plate for your offset red dot. This ensures a consistent cheek weld and seamless transition between your primary optic and offset red dot. A wide number of red dot sights are supported with interchangeable optic plates from Arisaka.

Arisaka Offset Optic Mount Specifications and Features:

• Arisaka Defense Item Number: OOM-BASE
• Offset Optic Mount
• Mounts to Picatinny Rail and uses 3 Picatinny Slots
• Allows Optic to Sit at 35-Degree or 45-Degree Offset
• Ambidextrous Design Allows Optic to Sit to the Right or Left of Picatinny Rail
• CNC Machined from 6061-T651 Aluminum
• MIL-A-8625 Type III Hard Coat Anodized Finish
• Length: 1.0"
• Height: base sits 0.180" above surface of the Picatinny rail
• Weight: 1.9 oz
• Color: Black

Note:
This is the mount base ONLY. Arisaka Offset Optic Plates sold separately.
